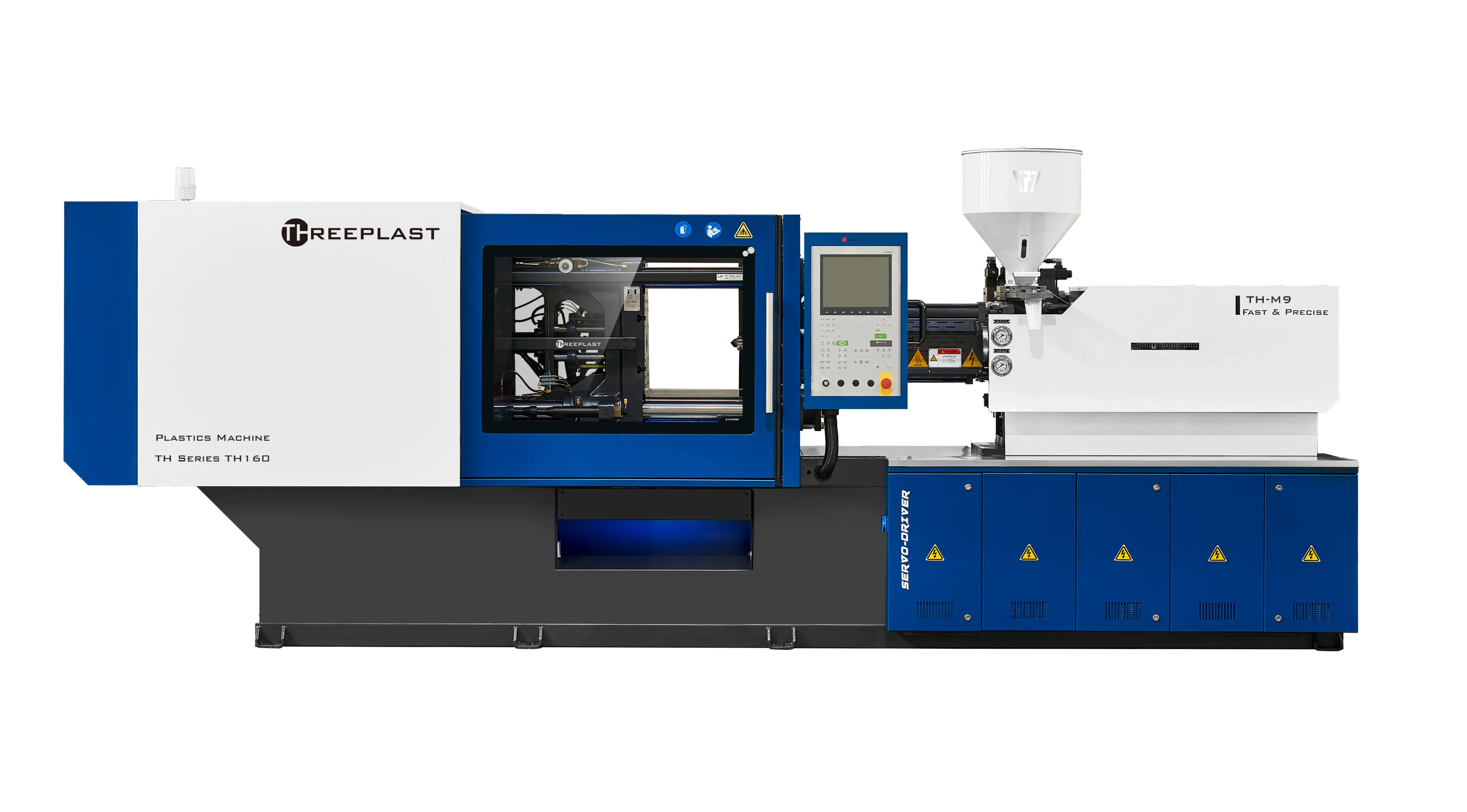

Servo Hydraulic Injection Machine
PET Bottle Preform Injection Molding Machine
Special servo injection molding machine for PET bottle preform production. Custom tonnage & multi-cavity mold support, stable plasticization for water, beverage, oil bottle PET preforms.
Our injection molding machines are fully dedicated to manufacturing all types of PET bottle preforms.

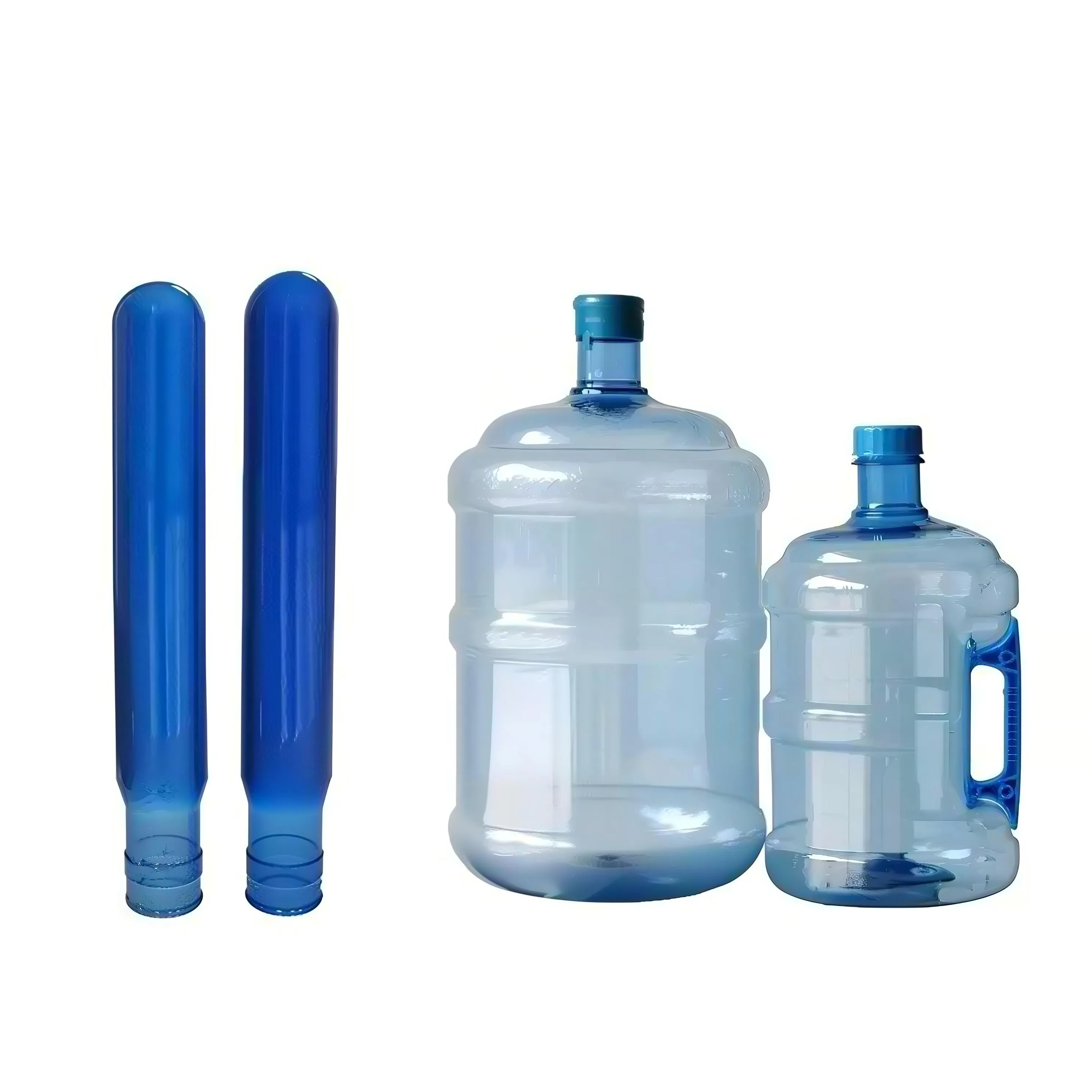

We can produce preforms with widely used neck diameters such as 28mm, 32mm, and 35mm, matching bottles of various capacities from small 200ml, 500ml, 1L, 2L, 5L to large 5-gallon containers for water, beverage, and edible oil packaging.
PET resin is highly sensitive to moisture; if the material is not fully dried before injection, it will easily cause bubbles, foggy surfaces, and unstable preform quality. That’s why a professional PET dryer is a must-have supporting device for every complete preform production line.
For factories with strict high-quality standards, many of our clients also add a crystallizer to the whole production setup. It effectively reduces crystal spots inside preforms and ensures a consistent, clear, transparent finish for all finished bottle blanks.
Key Production Reminders
Strict Raw Material Drying Management
PET pellets absorb moisture easily in the air. You must run the PET dryer continuously according to the material parameter requirements before feeding. Insufficient drying will lead to bubbles, silver streaks, and cloudy preforms, which cannot be used for subsequent blow molding. Never skip or shorten the drying process to save production time.
Reasonable Matching of Auxiliary Equipment
The dryer is a mandatory supporting unit. If you produce high-end transparent preforms for drinking water or cosmetic packaging, we recommend equipping a crystallizer to restrain crystal points and guarantee bright, flawless preform surfaces. Mismatched auxiliary machines will directly increase your defective rate.
Customize Mold Cavity Layout Based On Preform Specs
We have many customers running stable mass production with 96-cavity molds, but the maximum feasible cavity number is determined by your preform neck size, single weight and bottle volume. Do not blindly pursue more cavities; our technical team will calculate the clamping force and plasticizing capacity to match a safe, efficient mold layout for you.
Match Proper Machine Tonnage For Your Output Target
280T and 320T are our most popular models for standard water & beverage preforms. If you produce large-volume 5-gallon preforms or require ultra-high daily output, our engineers will recommend larger tonnage machines to avoid insufficient injection pressure and slow cycle speed.
Stable Temperature Control Of Screw & Barrel
Our PET-dedicated screw barrel is optimized for high-temperature plasticization. Keep a stable heating curve during long-hour continuous production; drastic temperature fluctuations will trigger yellowing, uneven wall thickness, and inconsistent preform weight.
Regular Maintenance Of Core Components
Carry out routine inspection for the clamping unit, servo hydraulic system, and dryer every week. Timely replacement of worn sealing parts can prevent flash, leakage, and unexpected production shutdowns.
WHY CHOOSE OUR PET PREFORM INJECTION MACHINE
1. Professional PET-Dedicated Machine Design, Not General-Purpose Models
Our entire machine structure, screw barrel, and clamping system are independently developed exclusively for PET preform molding, rather than modified universal injection machines. We optimize high-temperature plasticization performance specially for PET resin to greatly cut down common defects like crystal spots, bubbles, and yellowing. We support preforms of 28mm/32mm/35mm necks and capacities ranging from 200ml to 5-gallon.
2. Mature Tonnage Solutions Proven By Mass Global Clients
280T and 320T servo machines are the mainstream choice for most of our customers, making standard beverage & water preforms. For factories chasing ultra-high daily output, we support high-cavity mold customization — many partners operate stable production with 96-cavity molds. Our team evaluates your performance, weight, size, and output demand to match the most suitable tonnage and mold layout for you.
3. Complete Supporting Auxiliary Machine Matching Service
We offer one-stop matching solutions for all necessary peripheral equipment. PET dryers are essential for every preform line, and we can supply matched crystallizers for customers with strict high-transparency requirements to eliminate crystal spots fundamentally. You do not need to source auxiliary machines from separate suppliers.
4. Flexible Full Customization For All Production Demands
We customize clamping force, plasticizing capacity, mold opening stroke, and multi-cavity layouts fully based on your preform drawings, single weight, and target daily output. All core components, including the screw barrel and clamping unit, can be adjusted to fit your exclusive molds. Free mold testing service will be arranged after we confirm your formal order, to verify cycle efficiency and quality.
5. Stable Servo Hydraulic System For Long Continuous Operation
Full servo drive reduces idle power consumption and shortens molding cycle time. High-rigidity clamping frame prevents flash under high injection pressure, ensuring uniform wall thickness of every preform. Every machine passes a full-load aging test before delivery, with low vibration and low noise for 24-hour non-stop production.
