Servo Hydraulic Injection Machine
130T injection machine
130T injection machine from China manufacturer for sell
This 130 ton servo injection molding machine is a versatile general-purpose plastic molding equipment, specially designed for mass production of small daily plastic components. It is widely adopted by medium and small plastic processing factories, household goods manufacturers, electronic accessory workshops, and daily chemical product production plants.
Different from low-precision ordinary injection machines, we fully upgrade the clamping and injection unit to adapt to mainstream general plastic raw materials. It effectively eliminates common molding defects, including flash, incomplete filling, product deformation, uneven single-piece weight, and surface scratches during long-time non-stop production.
This model is compatible with molds for various small plastic items: plastic shell accessories, small storage containers, plastic handles, electronic insulating parts, daily chemical plastic housings and disposable plastic fittings. Every machine undergoes a strict 72-hour continuous full-load running test before delivery. We provide one-stop full production supporting solutions, including custom plastic molds, industrial chillers, and automatic raw material feeding systems.
Machine Specification
Description Unit | | TH130 | | |
Injection Unit | Unit | A | B | C |
Screw Diameter | mm | 38 | 42 | 45 |
Screw L/D Ratio | L/D | 24.1 | 21.7 | 20.2 |
Shot Volume | cm³ | 193 | 235 | 270 |
Shot Weight(PS) | g | 178 | 217 | 149 |
Injection Pressure | MPa | 226 | 185 | 161 |
Max Screw Speed | rpm | | 240 | |
Clamping Unit | | | | |
Clamping Force | t | 130 | | |
Opening Stroke | mm | 390 | | |
Tie Bars | mm | 430*430 | | |
Max Mold Height | mm | 460 | | |
Min Mold Height | mm | 180 | | |
Ejector Stroke | mm | 118 | | |
Ejector Force | kW | 53 | | |
Others | | | | |
Servo Drive Power | kW | 19 | | |
Heating Capacity | kW | 7.4 | | |
Oil Tank Capacity | L | 220 | | |
Machine Size | m | 4.82*1.28*2.1 | | |
Machine Weight | t | 4.4 | | |
Application Range
This general 130T injection molding machine supports mass production of multiple plastic items, mainly including:
- Household plastic supplies: Small storage boxes, plastic handles, daily plastic fittings
- Electronic plastic accessories: Small insulating housings, wire connectors, plastic brackets
- Daily chemical plastic parts: Small packaging shells, cosmetic plastic accessories
- Light industrial plastic small parts: General plastic structural fittings
It is cost-effective multi-purpose equipment for factories that need to frequently switch production of different small plastic products.
Machine Structure Details
- Clamping Unit: Heavy-duty four-column rigid frame, wear-resistant guide rails, and stable fast mold opening and closing.

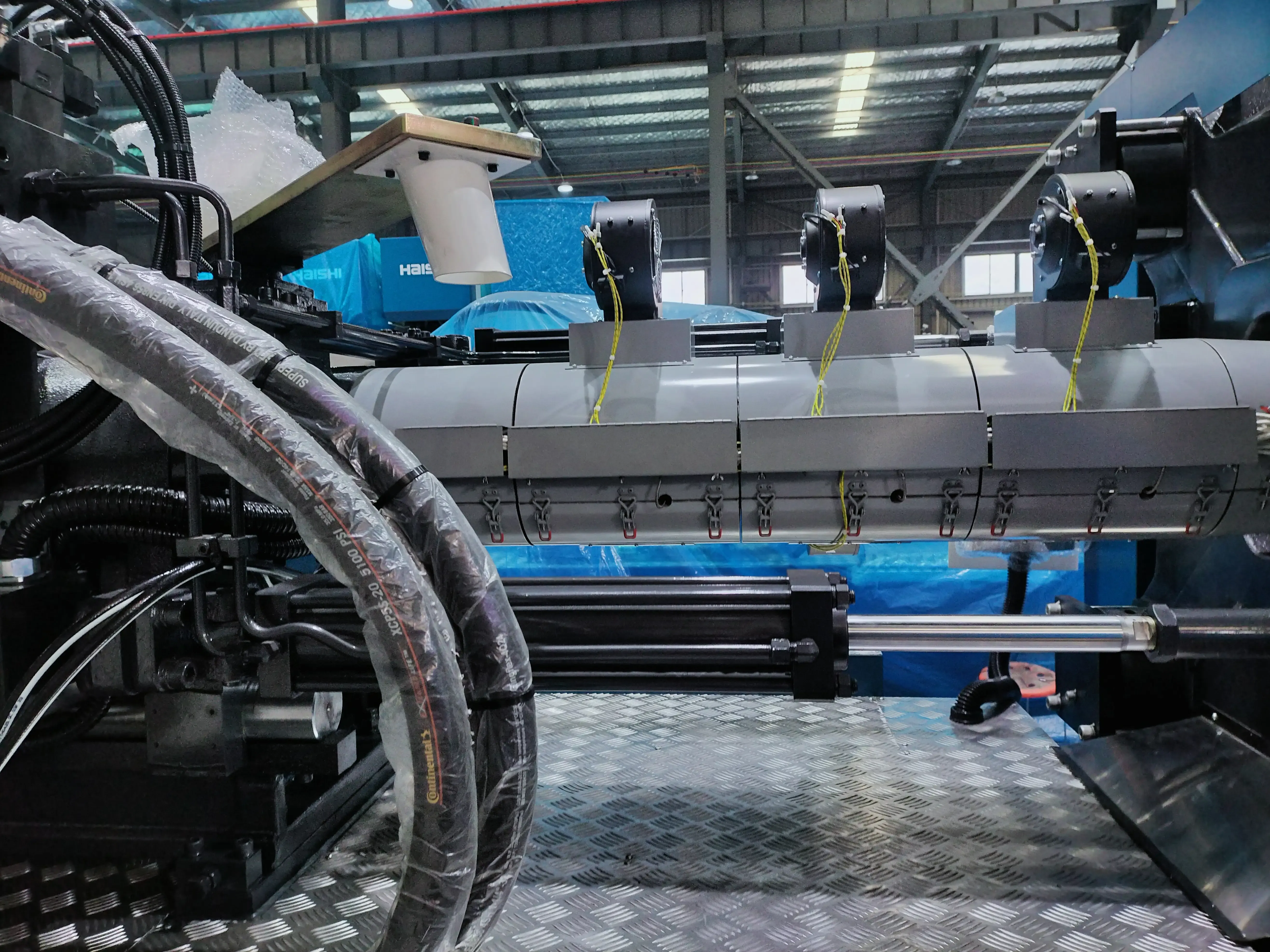

- Injection Plasticizing Unit: General wear-resistant screw & barrel, independent segmented heating for uniform plastic melting.

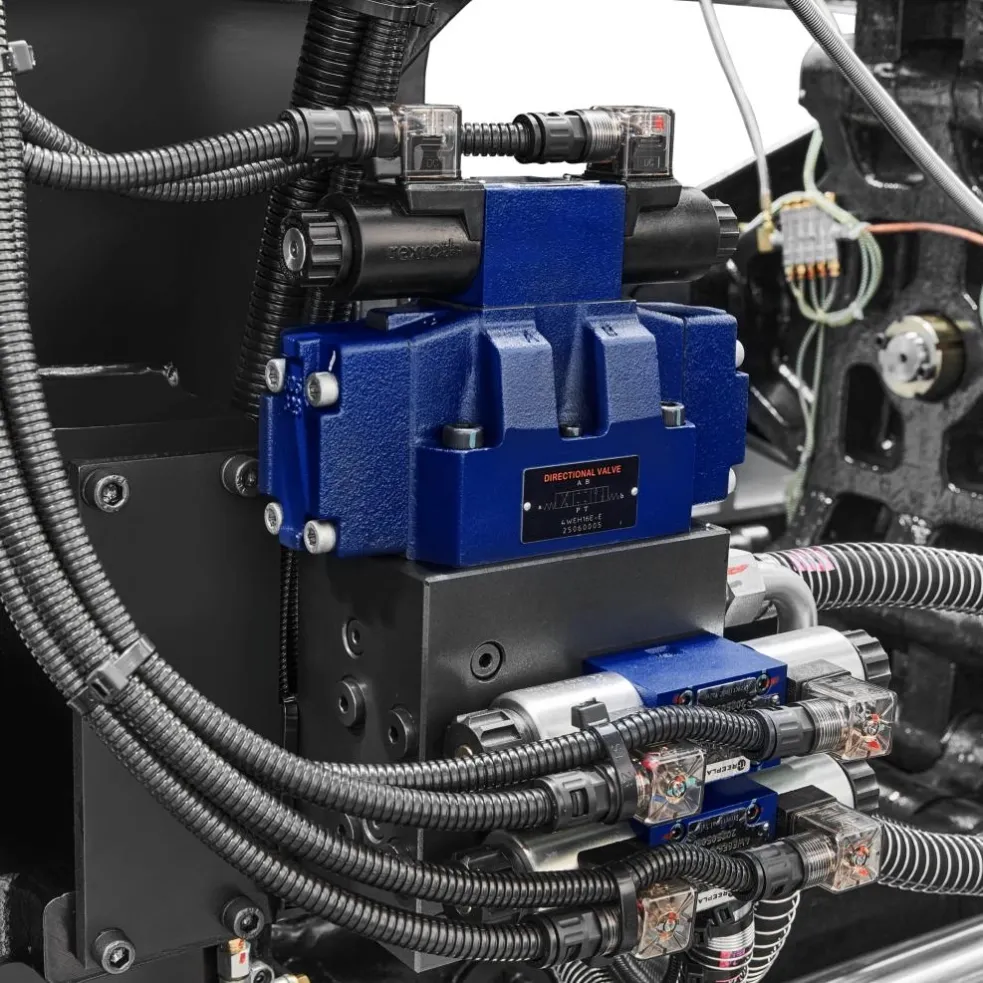

- Servo Power Unit: Low-noise independent servo drive, stable pressure output, low heat generation.
- Operation Console: Humanized touch screen with production data statistics and automatic fault diagnosis function.
- Safety Protection System: Fully closed safety door with power-off interlock, multi-position emergency stop buttons to guarantee production safety.
Supporting Mold & Auxiliary Equipment
We supply matched supporting accessories for this general injection machine:
- Custom plastic molds: Produced according to customers’ product drawings or samples
- Auxiliary machines: Industrial water chiller, automatic raw material feeder, optional finished product pick-up robot
Machine Running Display
We provide real workshop operation videos of this 130T general injection machine. The video shows full automatic production flow from raw material feeding, melting injection, mold cooling, to finished product ejection, including production test of various small plastic components. Contact our sales team to get HD video files for your factory inspection.
Why Choose Our General Injection Machine
- 20+ years professional manufacturer of general servo injection molding machines, with an independent R&D and production workshop.
- Every machine passes a 72-hour continuous full-load test before shipment to eliminate potential mechanical faults.
- Complete warranty: 1-year full machine warranty, 2-year warranty for core servo motor and hydraulic components.
- Global after-sales service: Overseas engineers available for on-site installation and training, 24-hour remote online technical guidance.
- Customization support: Adjust machine color, control panel language, and screw specifications according to your production demands.
- Rich overseas project cases, we have delivered injection machines to plastic processing factories across Africa, South America, and Southeast Asia.
Overseas Customer Cases
We have cooperated with numerous plastic processing factories worldwide. Our real customer materials include on-site installation photos, production test videos and client feedback from Nigeria, Ghana, Peru, Bangladesh, Vietnam, and other countries. Contact our sales representative to obtain relevant case materials for your reference.
Packing & Delivery
Packing: Standard export protective packaging, anti-rust treatment for metal parts, shockproof foam wrapping for control panel and precision components.Production Lead Time: 7-15 working days after deposit received.Shipping: Sea freight, air freight and land transport available; a full set of customs clearance documents provided.Loading Port: Main Chinese seaports, as the customer requested.
FAQ
Q1: What kinds of plastic products can this 130-ton general machine make?
A1: It is suitable for all kinds of small plastic components, including household plastic goods, electronic plastic accessories, daily chemical plastic shells, and light industrial plastic fittings. We can customize molds according to your samples.
Q2: Can I change different molds to produce different plastic items on this machine?
A2: Yes, it is a general multi-purpose injection machine. You can switch between different molds freely to produce various small plastic parts.
Q3: What plastic materials can this machine process?
A3: The general wear-resistant screw supports PP, HDPE, PS, ABS, PE, and most common thermoplastic raw materials.
Q4: What after-sales support can you provide for overseas buyers?
A4: English operation manual, 24-hour remote video troubleshooting, on-site engineer installation & training optional. Core spare parts can be shipped by international express quickly.
Q5: What auxiliary machines are recommended to match this equipment?
A5: An industrial water chiller is suggested to shorten molding cycles. Automatic feeding machine and pick-up robot are optional upgrades for automatic production.
Get Free Catalog & Competitive Factory Quotation
If you are looking for a stable, energy-saving general injection machine for small daily plastic components, send us your detailed requirements, including target products, daily output, and target market. Our professional sales engineer will send a full catalog, parameter sheet, and the best factory price within 24 hours. Leave your WhatsApp, email, or Company Name for a fast priority reply.
Optional Extra Upgrade Section
- Automatic finished product pick-up robotic arm
- Large flow industrial water cooling chiller
- Vacuum automatic raw material feeding machine
- Reinforced wear-resistant screw for recycled plastic materials
- Custom multilingual control system (Portuguese, Arabic, Russian optional)
