Servo Hydraulic Injection Machine

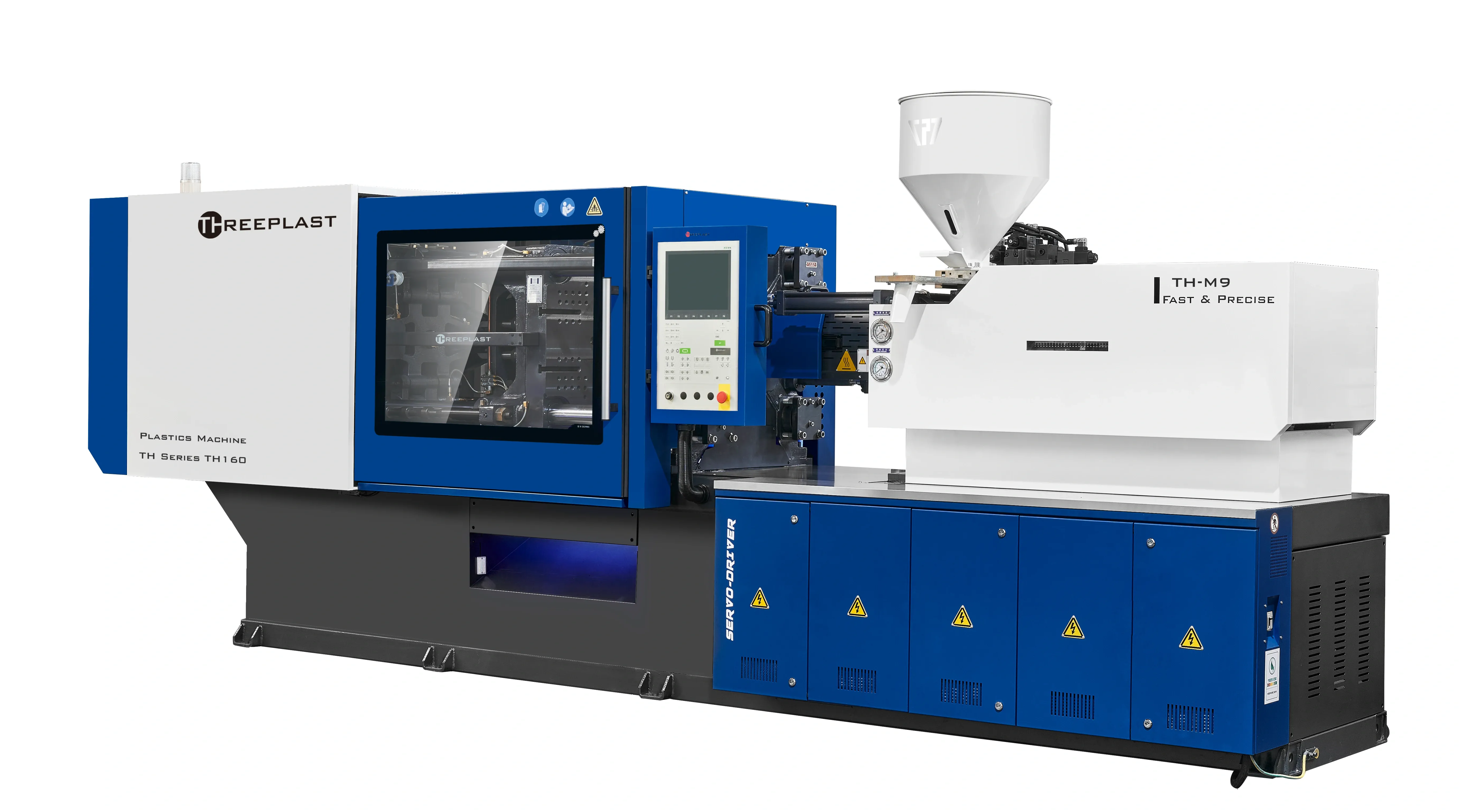

180T servo hydraulic injection machine
180-ton servo-hydraulic injection machine from China manufacturer.
The 180T servo hydraulic injection molding machine is designed for producing plastic parts with stable clamping force, accurate injection control, and energy-saving servo hydraulic performance. It is suitable for daily plastic products, packaging components, small industrial parts, and customized plastic molding applications.
Surui Machinery supplies injection molding machines with different clamping forces, screw sizes, and control configurations. We can recommend suitable machine models according to your product size, material, mold dimensions, and production capacity requirements.
Description | TH180 | | | |
Injection Unit | Unit | A | B | C |
Screw Diameter | mm | 45 | 50 | 55 |
Screw L/D Ratio | L/D | 24.5 | 22 | 20 |
Shot Volum | cm³ | 342 | 421 | 510 |
Shot Weight (PS) | g | 311 | 384 | 465 |
Injection Pressure | MPa | 221 | 179 | 148 |
Screw Speed | rpm | | 240 | |
Clamping Unit | | | | |
Clamping Force | t | 180 | | |
Opening Stroke | mm | 460 | | |
Tie Bar | mm | 515*475 | | |
Max Mold Height | mm | 550 | | |
Min Mold Height | mm | 210 | | |
Ejector Stroke | mm | 135 | | |
Eject Force | kN | 62 | | |
Others | | | | |
Servo Drive Power | kW | 25 | | |
Heating Capacity | kW | 11.5 | | |
Oil Tank Capacity | litre | 305 | | |
Machine Size | m | 5.4*1.45*2.25 | | |
Machine Weight | t | 5.8 | | |
Key Features
- Servo hydraulic system for lower energy consumption and stable operation
- Accurate injection control for consistent product weight and surface quality
- Strong clamping structure suitable for long-term production
- Easy-to-use control system with parameter setting and fault display
- Multiple screw and barrel options for PP, PE, PET, ABS, PC, and other materials
- Customizable machine configuration according to mold and product requirements
- Suitable for plastic packaging, household goods, caps, fittings, and industrial parts
Applications
This 180-ton injection molding machine can be used for producing medium-sized plastic products, such as plastic caps, containers, household parts, electronic plastic components, fittings, packaging products, and customized molded plastic parts.
Why Choose Threeplast Injection Machinery?
Threeplast Machinery provides injection molding machines for plastic product manufacturers, packaging factories, and customized molding projects. We help customers select suitable machine models based on product weight, mold size, material type, and production requirements.
Our machines can be customized with different screw sizes, servo systems, control units, and auxiliary equipment. We also provide technical support, spare parts supply, and installation guidance for overseas customers.
FAQ
Q: What products can this injection molding machine produce?
A: It can produce plastic caps, containers, fittings, household plastic parts, packaging products, and other molded plastic components.
Q: How do I choose the right injection molding machine tonnage?
A: The suitable tonnage depends on product size, projected area, mold dimensions, material type, and production capacity. You can send us your product drawing or sample, and we will recommend a suitable model.
Q: Can this machine be customized?
A: Yes. The screw diameter, injection unit, servo system, control system, mold space, and auxiliary equipment can be customized according to production needs.
Q: What materials can be used?
A: Common materials include PP, PE, PET, ABS, PS, PC, and other thermoplastic materials.
Q: Do you provide overseas support?
A: We provide installation guidance, technical support, spare parts, and operation training according to project requirements.
Tell us your product size, material, mold dimensions, and expected output. Surui Machinery will recommend a suitable injection molding machine model and provide a quotation.
