90 ton plastic injection machine
90 ton plastic injection machine for small products

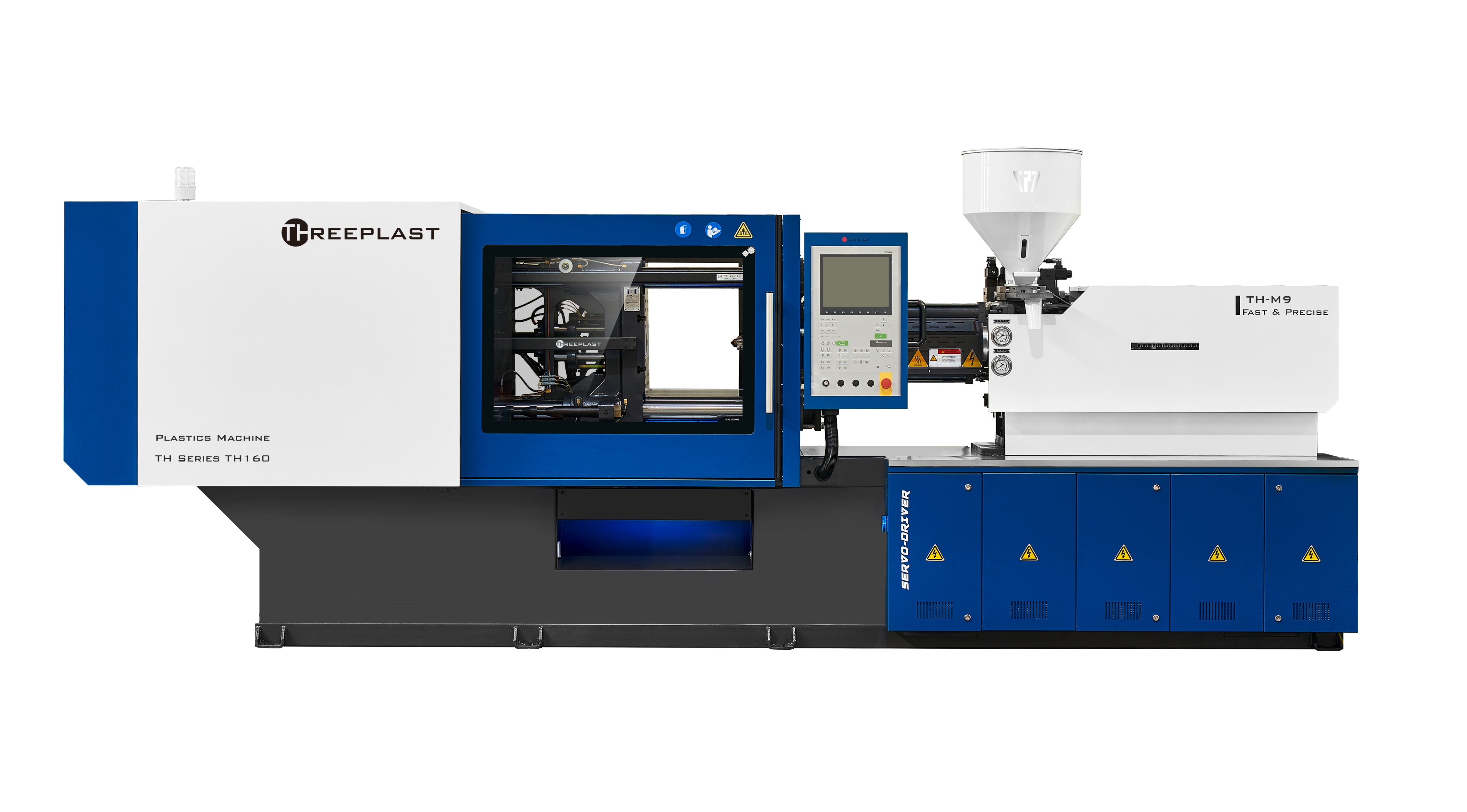

This 90-ton servo injection molding machine is a compact, space-saving general plastic molding equipment, specially designed for mass production of all types of tiny small plastic products. It is widely favored by small plastic processing factories, garment accessory workshops, miniature electronic parts manufacturers, toy factories, and daily chemical small parts production plants.
Different from low-precision ordinary injection machines, we optimize the clamping and injection unit to match small-sized precision multi-cavity molds. It effectively eliminates common molding defects, including flash, incomplete filling, product deformation, uneven single-piece weight, and surface scratches during long-hour non-stop continuous production.
This model is perfectly compatible with molds for various miniature plastic items: small plastic fasteners, clothing decorative accessories, mini electronic connectors, tiny toy components, cosmetic mini plastic shells, and disposable small plastic fittings. Every machine undergoes a strict 72-hour continuous full-load running test before delivery. We provide one-stop full production supporting solutions, including custom multi-cavity small molds, industrial chillers, and automatic raw material feeding systems.
Machine Specification
Description Unit | | TH90 | | |
Injection Unit | Unit | A | B | C |
Screw Diameter | mm | 30 | 35 | 40 |
Screw L/D ratio | L/D | 23.5 | 22 | 19.2 |
Shot Volume | cm³ | 120 | 163 | 214 |
Shot Weight(PS) | g | 109 | 149 | 194 |
Injection Pressure | MPa | 283 | 208 | 160 |
Max Screw Speed | rpm | | 240 | |
Clamping Unit | | | | |
Clamping Force | t | 90 | | |
Opening Stroke | mm | 345 | | |
Tie Bars | mm | 370*370 | | |
Max Mold Height | mm | 380 | | |
Min Mold Height | mm | 170 | | |
Ejector Stroke | mm | 91 | | |
Ejector Force | kN | 38 | | |
Others | | | | |
Servo Drive Power | kW | 15 | | |
Heating Capacity | kW | 7.2 | | |
Oil Tank Capacity | L | 157 | | |
Machine Size | m | 4.1*1.1*1.8 | | |
Machine Weight | t | 3.5 | | |
Core Advantages
1. Energy Saving Servo Hydraulic Drive System
An independent servo motor and a variable hydraulic pump are equipped. The hydraulic system only outputs pressure when clamping and injecting, with no excess oil overflow during standby. Compared with traditional fixed pump injection machines, it cuts power consumption by 35%~45%. Stable pressure and speed control keep consistent product quality during all-day continuous running.
2. Universal Wear-Resistant Plasticizing Assembly
Standard nitrided wear-resistant screw and barrel, compatible with most common plastic raw materials like PP, ABS, PS, and PE. It resists material carbon accumulation, avoids black spots on finished tiny products, and extends the service life of wearing parts.
3. Balanced Four-Column High-Rigidity Clamping Structure
90-ton balanced clamping force ensures even pressure distribution for all kinds of small multi-cavity molds. High parallel four guide columns prevent mold shifting, effectively reducing flash on miniature plastic products. Smooth and stable mold opening & closing improve overall daily production efficiency for small items.
4. Multilingual Intelligent Touch Control System
10-inch touch screen supports English, Spanish, French, and other mainstream languages. It can store molding parameters of up to 99 sets of different small molds, with segmented automatic control of temperature, injection speed, and holding pressure. New operators can master basic operations quickly with our English operation manual.
Application Range
This compact 90T general injection molding machine focuses on mass production of miniature small plastic goods, mainly including:
Garment small accessories: Plastic buttons, snap fasteners, clothing decorative plastic ornaments
Mini electronic plastic parts: Small wire connectors, insulating plastic brackets, tiny electronic housings
Small toy plastic components: Mini toy shells, toy decorative plastic fittings
Daily chemical & light industrial small plastic parts: Cosmetic mini caps, plastic rivets, disposable plastic tiny fittings
It is cost-effective, space-saving equipment for factories that produce small plastic products and frequently switch between different molds.
Machine Structure Details

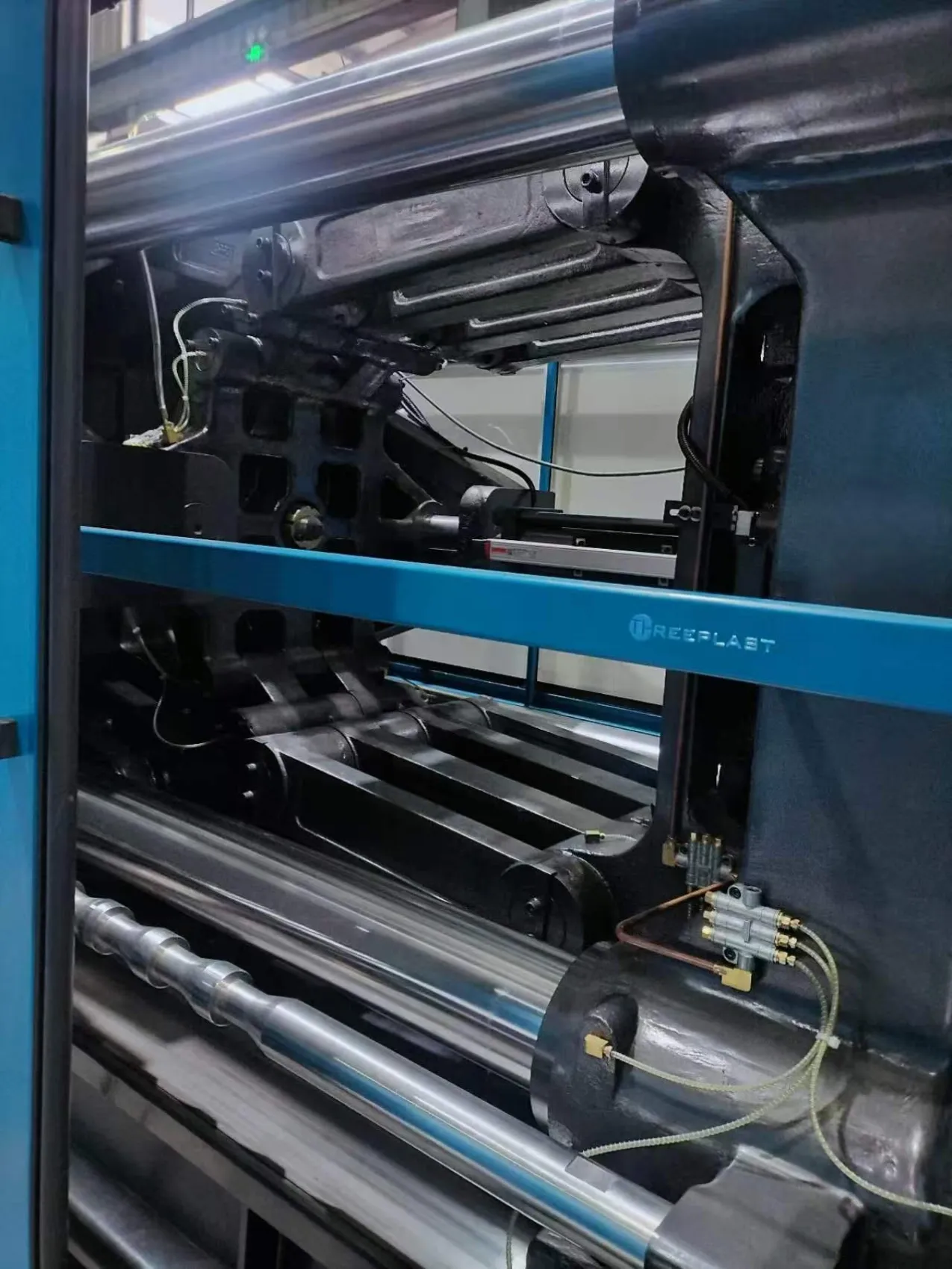

Clamping Unit: Compact four-column rigid frame, wear-resistant guide rails, stable fast mold opening and closing, specially optimized for small molds.
Injection Plasticizing Unit: General wear-resistant screw & barrel, independent segmented heating for uniform plastic melting.
Servo Power Unit: Low-noise independent servo drive, stable pressure output, low heat generation, and long service life.

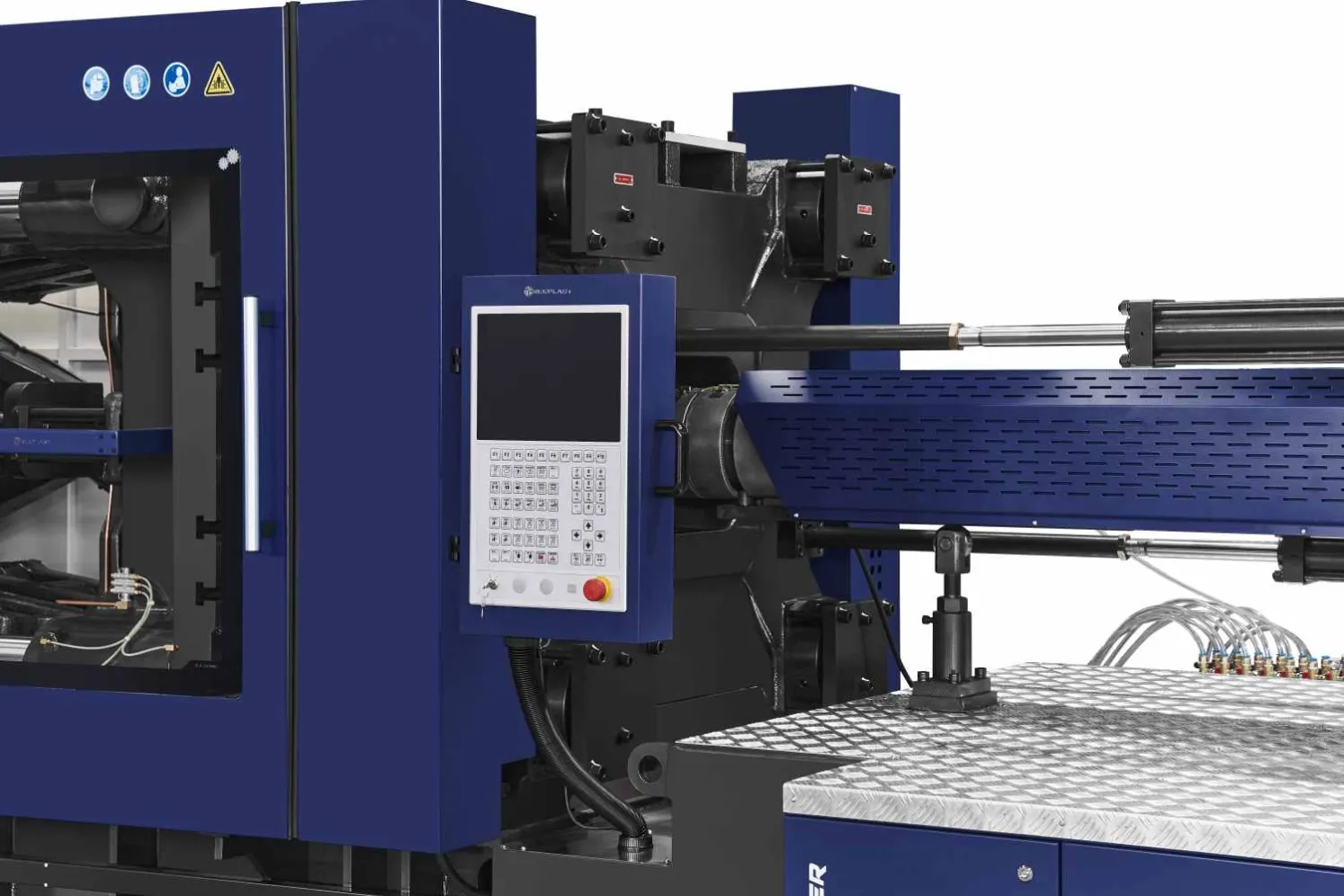

Operation Console: Humanized touch screen with complete production data statistics and automatic fault diagnosis function.
Safety Protection System: Fully closed safety door with power-off interlock, multi-position emergency stop buttons to eliminate all potential production safety risks.
Supporting Mold & Auxiliary Equipment
We supply matched supporting accessories customized for this 90T small-product injection machine:
Custom multi-cavity small molds: Produced strictly according to customers’ product samples or technical drawings
Auxiliary machines: Industrial water chiller, automatic raw material feeder, optional small finished product pick-up robot
Why Choose Our Factory
15 years of professional experience as a manufacturer of general servo injection molding machines, with an independent R&D and production workshop.
Every machine passes a 72-hour continuous full-load test before shipment to eliminate potential mechanical faults.
Complete warranty policy: 1-year full machine warranty, 2-year warranty for core servo motor and hydraulic components.
Global all-round after-sales service: Overseas professional engineers available for door-to-door installation, on-site operator training, and 24-hour remote online technical guidance.
Flexible customization service: Adjust machine color, control panel language, and screw specifications according to your actual production demands.
Mass overseas customer project cases: We have delivered compact small injection machines to plastic processing factories across Africa, South America, and Southeast Asia.
Packing & Delivery
Packing: Standard export protective packaging, anti-rust treatment for metal parts, shockproof foam wrapping for control panel and precision components.
Production Lead Time: 7-15 working days after deposit received.
Shipping: Sea freight, air freight, and land transport available; a full set of customs clearance documents provided.
Loading Port: Main Chinese seaports as the customer requested.
FAQ
Q1: What kinds of products can this 90-ton compact injection machine produce?
A1: It is designed for all tiny small plastic products, such as plastic buttons, mini electronic connectors, small toy parts, cosmetic miniature plastic fittings, and more. We can customize multi-cavity molds based on your samples.
Q2: Can I change different molds to make different small plastic items?
A2: Yes, it is a general multi-purpose injection machine. You can freely switch various small molds to produce different miniature plastic parts.
Q3: What plastic raw materials are compatible with this machine?
A3: The general wear-resistant screw supports PP, ABS, PS, PE, and most common thermoplastic pellets.
Q4: What after-sales support can you provide for overseas buyers?
A4: We supply detailed English operation manuals, 24-hour remote video troubleshooting service; we can also arrange professional engineers to your factory for machine installation, debugging, and worker training if you need. Core spare parts can be shipped quickly by international express.
Q5: What auxiliary equipment is recommended to match this injection machine?
A5: An industrial water chiller is recommended to speed up mold cooling and shorten molding cycles. An automatic raw material feeding machine and a mini pick-up robot are optional upgrades to realize unattended automatic production.
