Servo Hydraulic Injection Machine

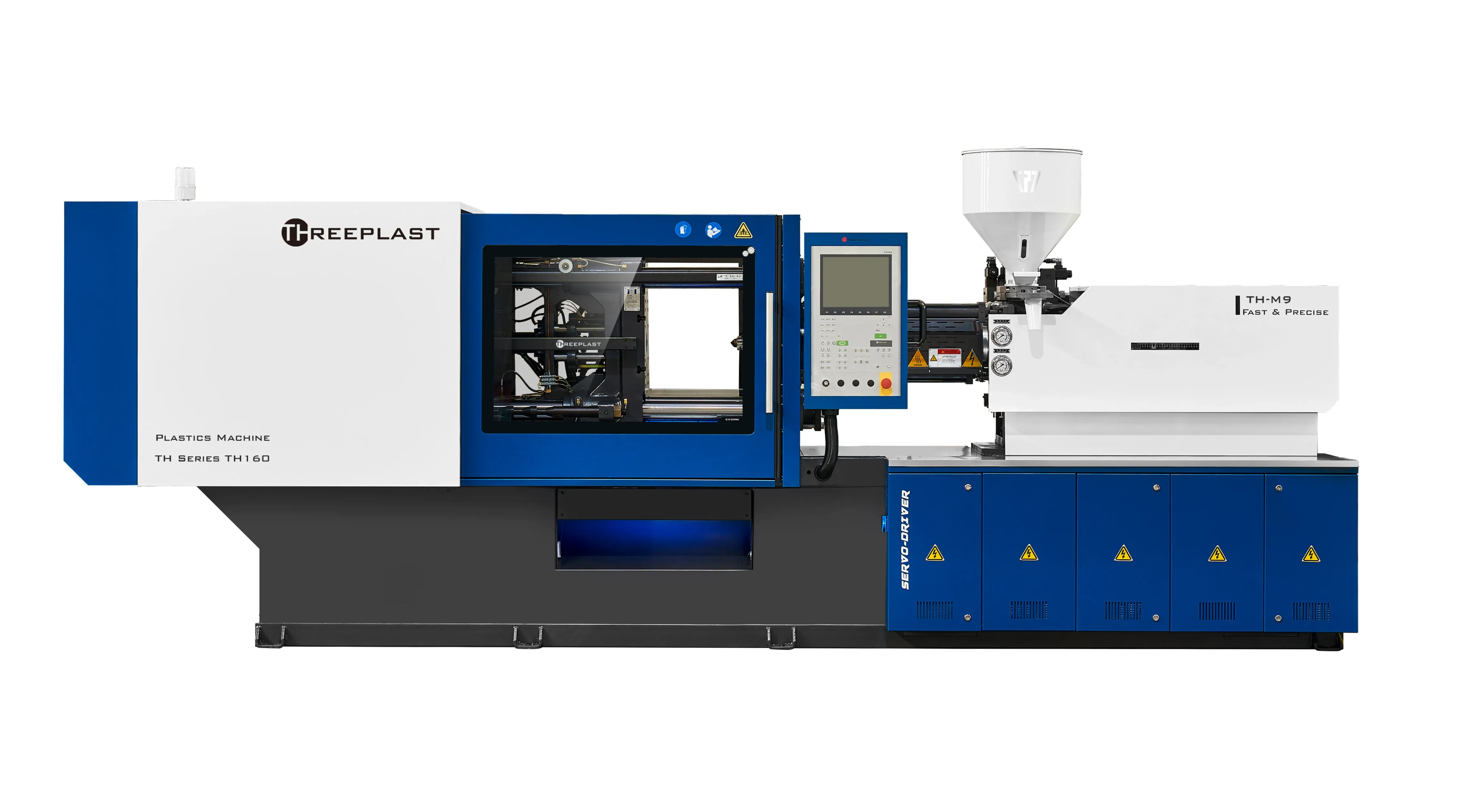

Servo Drive Injection Molding Machine
Our servo-drive injection molding machine saves 35%-50% power. High precision servo injection molding machine for caps, auto parts & daily plastic goods. Request quotation now.
Our servo drive injection molding machine is our core energy-saving molding equipment for global plastic manufacturers. Equipped with closed-loop servo-drive hydraulic control system, this servo injection molding machine cuts idle power loss greatly compared with traditional constant pump injection machines.
Whether you produce small plastic caps, automotive precision parts or large plastic containers, our servo-drive injection molding machine provides stable clamping force, precise injection pressure and consistent finished product quality to reduce your long-term production cost.
Injection Specification
Description Unit | | TH180 | | |
Injection Unit | Unit | A | B | C |
Screw Diameter | mm | 45 | 50 | 55 |
Screw L/D | L/D | 24.5 | 22 | 20 |
Shot Volume | cm³ | 342 | 421 | 510 |
Shot Weight (PS) | g | 311 | 384 | 465 |
Injection Pressure | MPa | 221 | 179 | 148 |
Max Screw Speed | rpm | | 240 | |

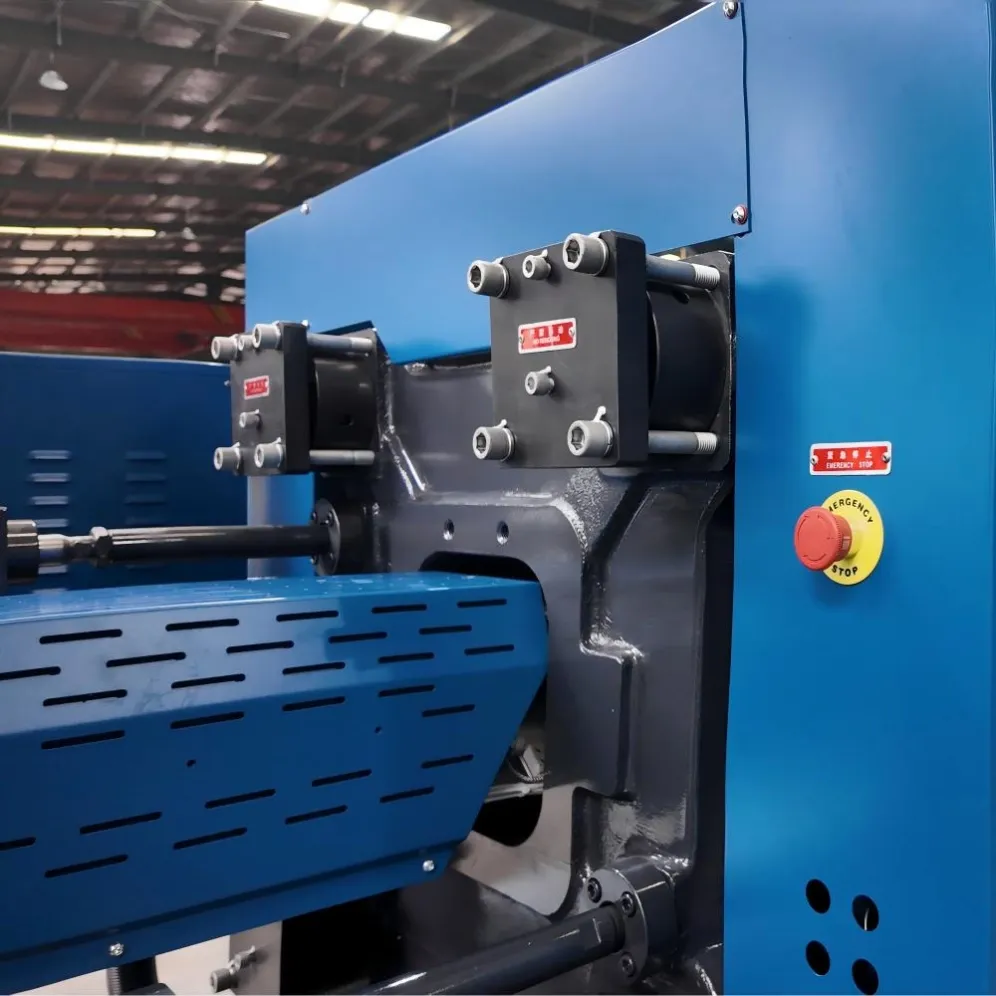

Clamping Unit | | | | |
Clamping Force | t | 180 | | |
Opening Stroke | kN | 460 | | |
Tie Bars | mm | 515*475 | | |
Max Mold Height | mm | 550 | | |
Min Mold Height | mm | 210 | | |
Ejector Stroke | mm | 135 | | |
Ejector Force | kN | 62 | | |
Others | | | | |
Servo Drive Power | kW | 25 | | |
Heating Capacity | kW | 11.5 | | |
Oil Tank Capacity | L | 305 | | |
Machine Size | m | 5.4*1.45*2.25 | | |
Machine Weight | t | 5.8 | | |
Core Advantages of Servo Drive Injection Molding Machine
1. 35%-50% Electricity Energy Saving
The core advantage of a servo-drive injection molding machine is on-demand power output. The servo motor only runs during injection, clamping, and ejection, and keeps low power standby in the cooling stage. Factories with long cooling cycles can save thousands of USD in electricity fees per year by using our servo injection molding machine.
2. Ultra High Molding Precision & Stable Dimensional Tolerance
Closed-loop servo feedback system adjusts injection speed, holding pressure, and mold locking force within 0.01s. Our servo drive injection molding machine controls product tolerance within ±0.01mm, perfect for thin-wall electronic housings, cosmetic containers, and auto precision plastic accessories.
3. Low Noise & Low Vibration Workshop Operation
Different from ordinary hydraulic machines with continuous pump operation, the servo-drive system works smoothly with running noise below 72dB. Less mechanical impact reduces mold wear and extends the service life of the whole servo injection molding machine.
4. Full Tonnage Customization Support
We supply servo drive injection molding machines from 90T to 600T. Customizable screw barrel size, mold opening stroke, feeding system, and brand servo motor to match your unique production output and raw material demands.
Wide Application of Servo-Drive Injection Molding Machine
Plastic Packaging Industry
Water bottle caps, food storage containers, paint buckets, disposable plastic tableware, cosmetic packaging shells
Automotive Plastic Parts Manufacturing
Car interior trims, lamp housings, plastic wire connectors, bumper small accessories, instrument panel plastic components
Consumer Electronics Production
Switch housings, remote control covers, battery plastic shells, charging plug plastic parts, and electronic connector casings
Daily Necessities & Household Goods
Plastic toys, kitchen utensils, storage boxes, furniture, plastic fittings, disposable plastic household supplies
LED Lighting Industry
LED bulb plastic housings, lamp bases, and lighting fixture plastic frames
Why Choose Us?
1. Strict 72-Hour Full Running Test Before Delivery
Every servo drive injection molding machine completes a continuous aging test before shipment, inspects the servo motor, hydraulic circuit, and PLC control panel to guarantee stable operation after arriving at your factory.
2. Global Remote & On-Site After-Sales Service
We offer a 12-month full machine warranty, a 24-month warranty for core servo drive components. Remote online debugging available 24/7; overseas engineers provide door-to-door maintenance support for large orders.
3. Free Mold Test Service
Customers can send their mold samples to our factory, and we test the mass production effect on our servo-drive injection molding machine free of charge before order confirmation.
FAQ
What’s the delivery time for servo drive spare parts?
A: The lead time of servo motors, servo valves and hydraulic spare parts depends on stock status and destination country. We prepare all in-stock spare parts within 3–5 working days after your order is confirmed. For logistics, air courier takes 5–12 working days, while sea shipping takes 20–40 working days to reach most countries worldwide. We will select the fastest shipping solution based on your urgent requirement.
What plastic raw materials can this servo-drive injection molding machine process?
A: Our servo injection molding machine is compatible with most mainstream thermoplastics, including PP, PE, ABS, PC, PVC, PA, PMMA and TPE. It delivers stable melting and injection performance for plastic packaging, automotive components, electronic housings and daily plastic necessities.
Do you offer machine operation training after purchase?
A: Yes, free professional operation training is available for all buyers. If you visit our factory for mold testing and machine inspection, our technical team will train your operators on complete machine operation, parameter adjustment and daily maintenance of the servo drive injection molding machine. We also provide digital operation manuals and tutorial videos for remote self-learning anytime.
Can one servo injection molding machine produce different types of plastic products?

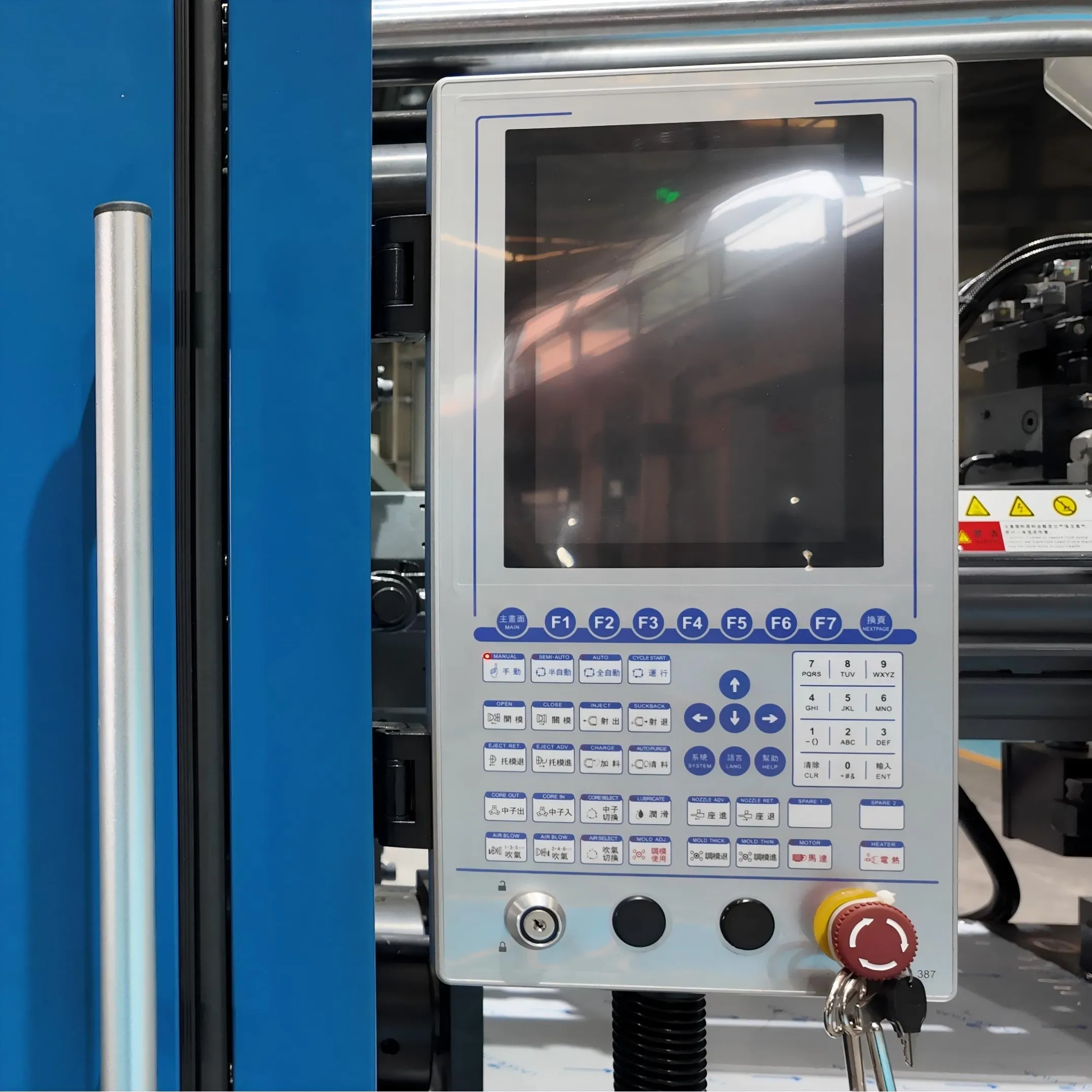

A: Definitely. The PLC touch panel of our servo drive injection molding machine supports storing multiple groups of mold production parameters. You only need to replace the mold and call the matched parameter program, then the machine can quickly switch production between bottle caps, auto plastic parts, cosmetic containers and other plastic goods.
How long is the service life of the servo drive core system?
A: With standardized operation and regular daily maintenance, the core servo-drive hydraulic system of our injection molding machine can run stably for many years. We provide a 24-month warranty for all core servo components to avoid unexpected breakdowns in the early stage of use.
If you are looking for stable, energy-saving and high precision molding equipment to upgrade your production line, our full series servo drive injection molding machine will effectively reduce your electricity cost and improve plastic product yield.
Send us your product drawings, daily output demand and target tonnage, our professional engineer team will design a customized production scheme and send you detailed parameter sheet & competitive quotation of servo-drive injection molding machine within 24 hours.
